TC
HOT WATER BATH TESTING

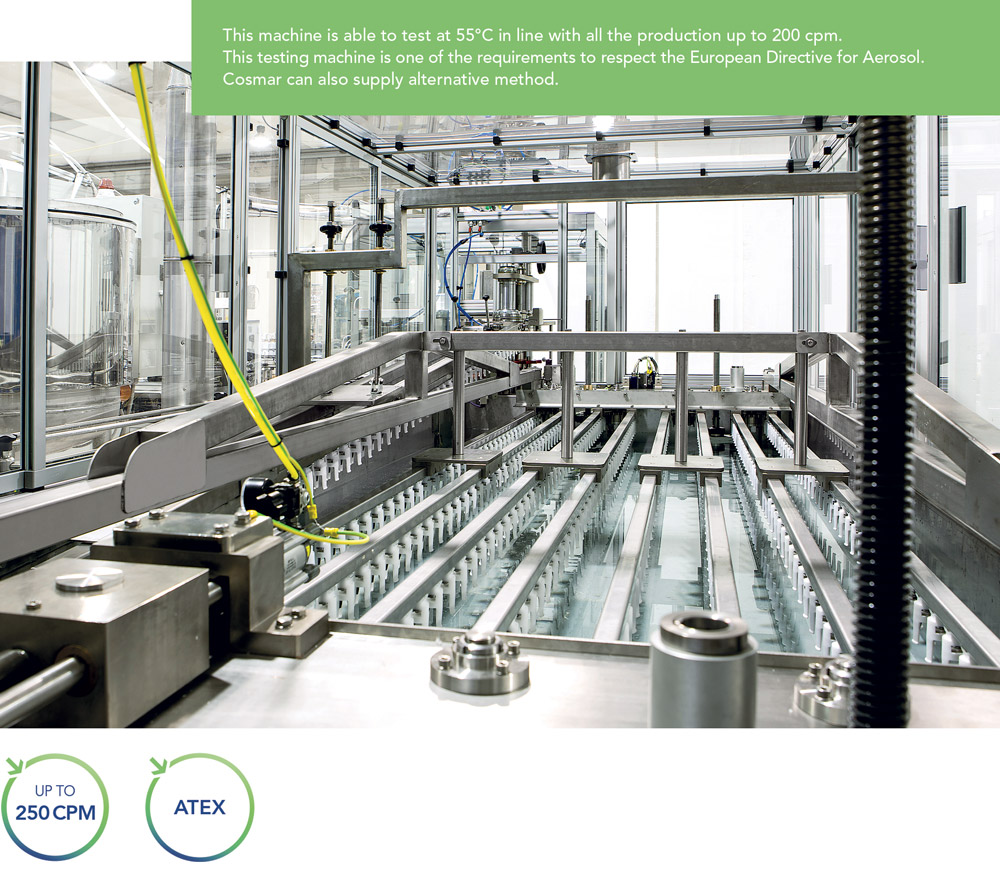

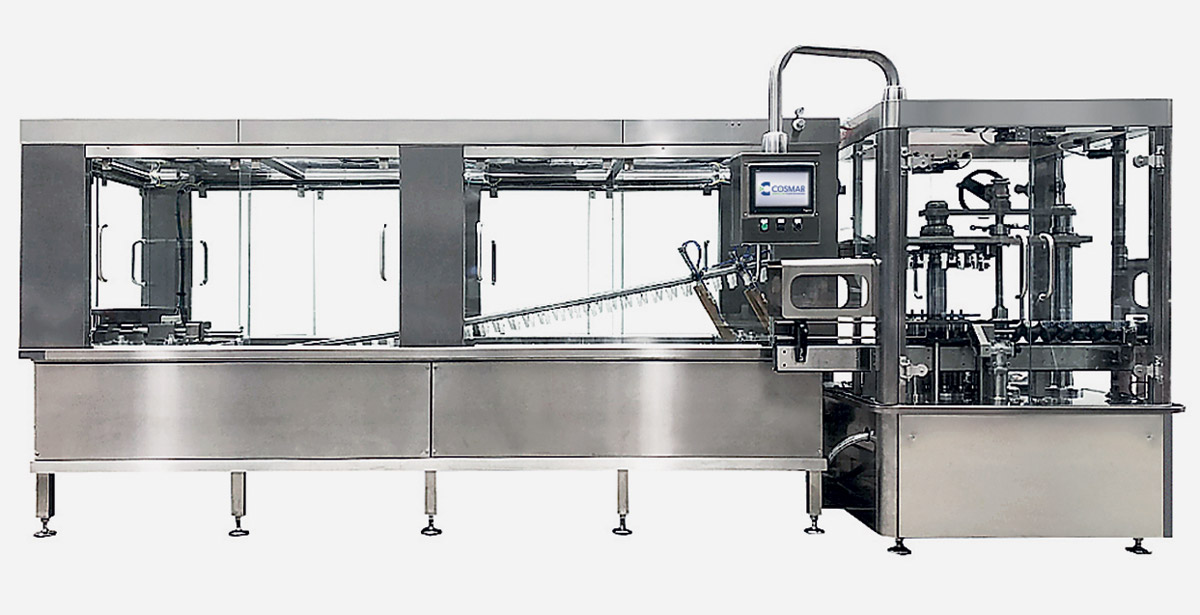

ROTARY MACHINE SUITABLE FOR TESTING AEROSOL CANS
This machine is provided with a S/S 304 water tank and heating unit to achieve 50-55 °C.
The cans are transported by means of special grippers fixed on a special chain. The machine is equipped with air blowing jet to dry the cans in the exit lane.
The automatic elevating system can be supplied as an option for fast extraction of the cans in case of emergency.
FEATURES
↘ Max speed up: 250 cpm
↘ Type of cans: tin plate and aluminium aerosol cans
▪ Diameter: Ømin 35 mm – Ømax 66 mm
▪ Height: max 320 mm
↘ Type of valves: 1”standard aerosol valves
↘ Standard voltage: 400V-50Hz; power supply 1,5 Kw (without heating unit)
↘ Air working pressure: 6-8 bar
↘ Air consumption max: 2000 Nl/min
OPTIONAL
The heating system can be provided as option.
The system consists of:
↘ Heating tank
↘ Heat exchange unit
↘ Recirculation pump
↘ Filter
↘ Control unit

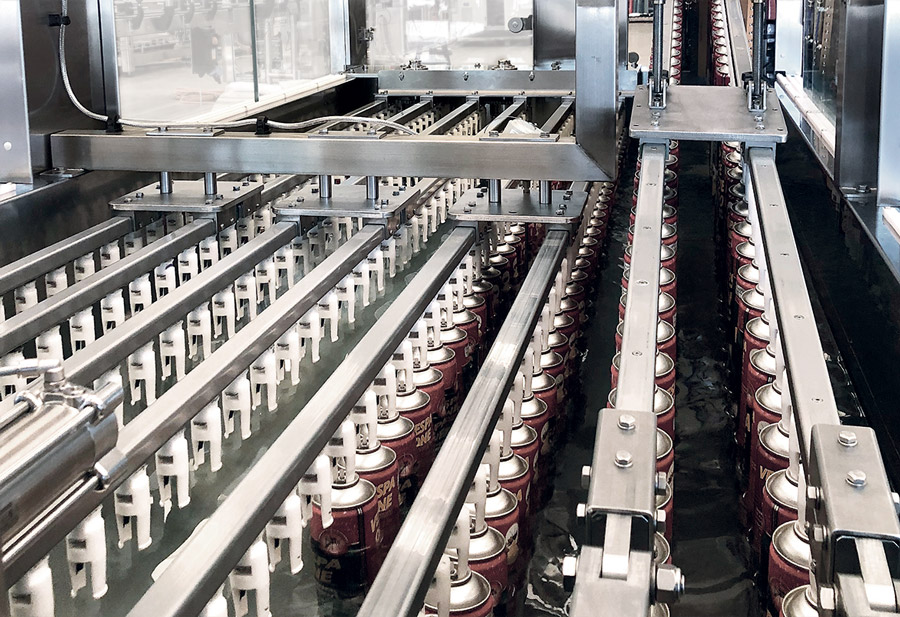

↖ MULTIPLE LANES FOR 3 MINUTES OF TESTING

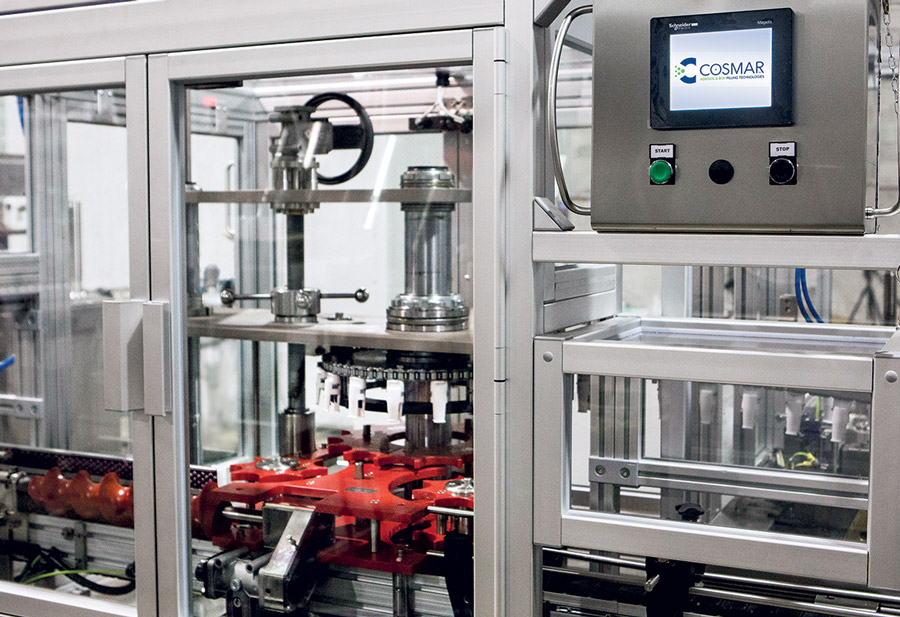

↗ INLET/OUTLET CONVEYOR
