MT|MC
ACTUATOR / CAP PLACING

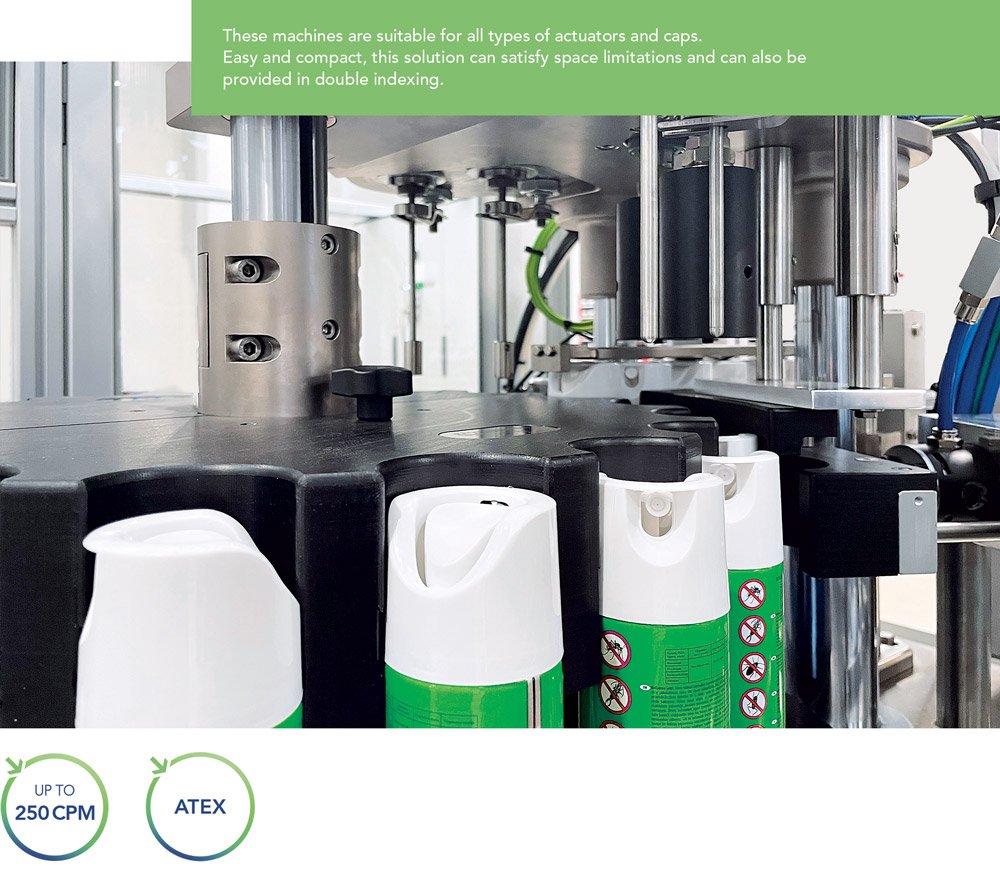

INDEXING MACHINE SUITABLE FOR ACTUATOR AND CAP PLACING
These machines are suitable for all types of actuators and caps.
Easy and compact, this solution can satisfy space limitations and can also be provided in double indexing.
These indexing machines have 20 rotary star wheel pockets that can accept cans with up to a maximum diameter of 66 mm.
Continuous rotary machine for high speed line up to 250 cpm is available.
These machines are easily installed, even on existing lines thanks to the in-line placement.
The machine base is fully guarded with stainless steel panels.
The MT, actuator placing machine, can fit all types of actuators, also with cannule or “L” shape ones.
The feeding system is provided according to the space and the production required.
The standard configuration is suitable for Zone 2.
The MC and MT series can be provided with automatic height adjustment of the feeding systems.
FEATURES
↘ Max speed up: 80 cpm for indexing type and 250 for continuous rotary
↘ Type of cans: tin plate and aluminium aerosol cans
• Diameter: min 35 mm – max 66 mm
• Height: max 320 mm
↘ Type of actuator: standard actuator for 1” aerosol valve
↘ Standard voltage 400V-50Hz; power supply 1.5Kw
↘ Air working pressure: 6-8 bar
↘ Air consumption max: 2000 Nl/min.
STANDARD CONFIGURATION

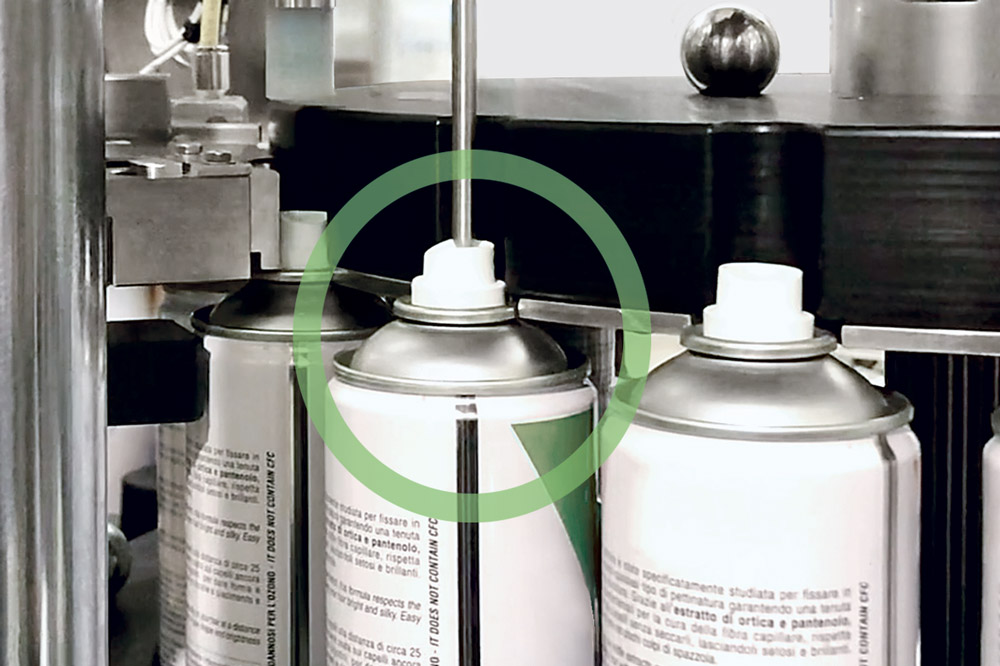

FOR ACTUATOR PLACING:
↘ 1 vibrator for actuator feeding placed outside the machine
↘ 1 placing unit installed inside the machine

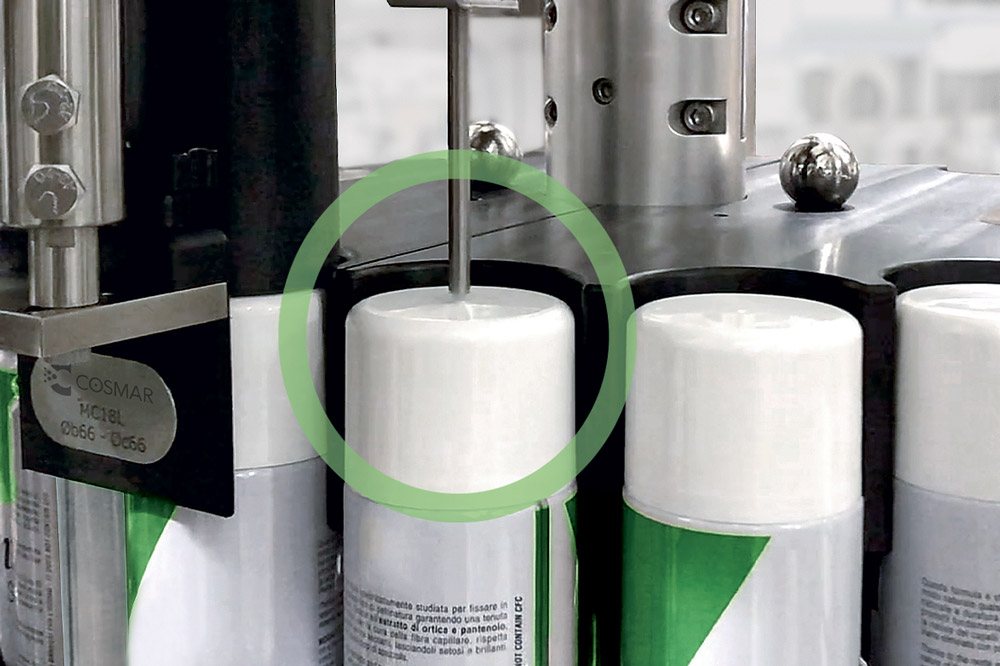

FOR CAP PLACING:
↘ 1 mechanical sorter positioned outside the machine (elevator included)
↘ 1 placing unit installed inside the machine

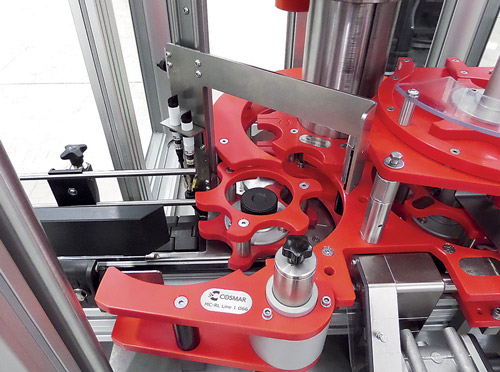

EXAMPLE OF ROTARY UNIT
The machine can reject automatically the can without actuator or cap and move them to a separate conveyor for further checks.
↗ CAP PLACING MACHINE WITH ELEVATOR
EXAMPLE OF ROTARY UNIT
The machine can reject automatically the can without actuator or cap and move them to a separate conveyor for further checks.
↗ CAP PLACING MACHINE
